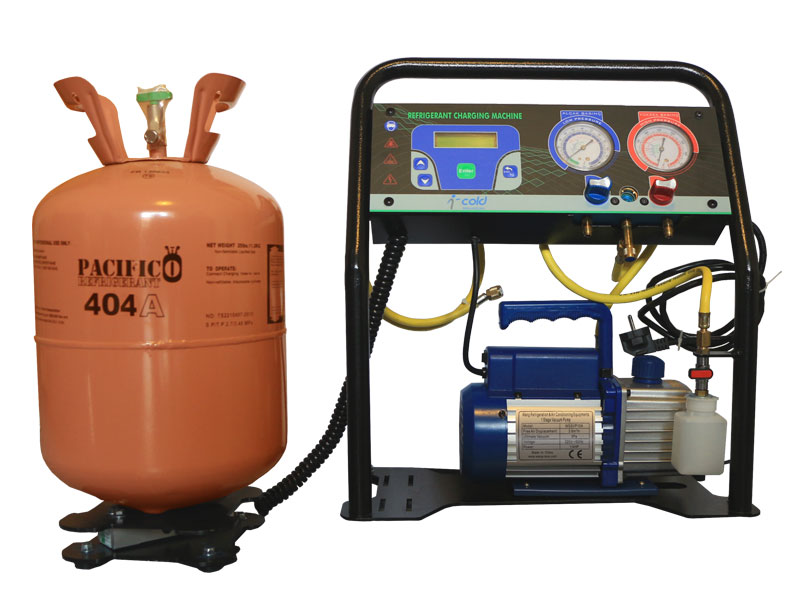

1. Refrigerant Charging Unit

    Main Features:

    Microprocessor controlled
    Adjustable vacuum duration
    Continuous tracking of charged refrigerant
    Replace vacuum pump oil warning
    Records and monitors charged refrigerant amounts
    Automatic leak control
    Internal high and low pressure gauges
    2x16 character LCD display



    Saves time by charging the vehicle directly from the tank. Other machines fill up their own tanks first.The amount of gas charged can be accurately calibrated by means of digital scales. Fine calibration increases cooling capacity.

    Device stops automatically upon reaching the predetermined gas amount, thus preventing excess recharge. This way user is not required to observe the operation continuously to manually stop the gas flow.


    Technical Features:

    Refrigerant Type
    R134a, R1234yf, R22, R404A, R407C

    Power Supply
    220 V ± 10% / 50 Hz

    2x16 LCD Display

    Scale Resolution
    ± 5 gr

    Vacuum Pump
    3 m³/h (1.8 CFM)

    Operating Range
    8° to 49° C

    Hose Length
    180 cm

    45 cm x 21 cm x 49 cm

    14 kg


    Main Functions:

    -Vacuum Leak Control
    -Oil Injection
    -Accurate Recharge
